I-MOTION NMB-14

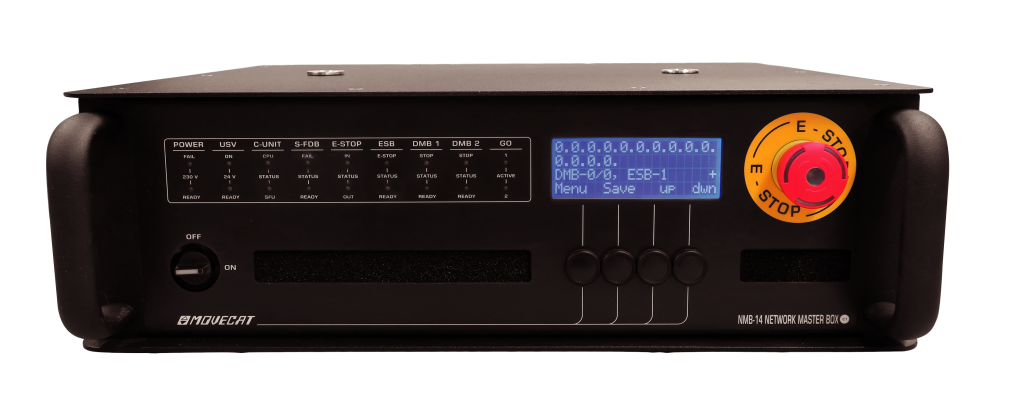

The I-Motion NMB-14 is a network master distribution box with delayed emergency-stop-module-(0,5sec) for variable speed drives to reduce dynamic force in case of an emergency stop.  The I-Motion NMB-14  satisfies the current requirements for SIL 3 applications with Stop Category 1 in conjunction with DGUV V17 (BGV C1) drives

Main features

  • E-Stop button, function-illuminated
  • evaluation of the E-Stop button, the connected control consoles, V-Motion and external E-Stop buttons for ramps, controlled E-Stop (Stop Category 1)
  • backlit 4×20 LC-display with automatic backlight switch-off
  • four functions keys
  • UPS module (3 minutes)
  • 1 x input I-Net C14FC
  • 1 x thru, 14 x  opto-isolated  I-Net C14FC outputs with active detection and LED display
  • 2 x independent DMB inputs C7FC
  • much much more

Compliant with

BGV D8 and C1, as well as igvw SQ P2 D8 Plus,  DIN 56950-1 and EN 61508 SIL 1 to SIL 3
