MOVECAT VMW-S 125-3-30

LIFTKET Entertainment and Movecat North America, building lifting solutions together

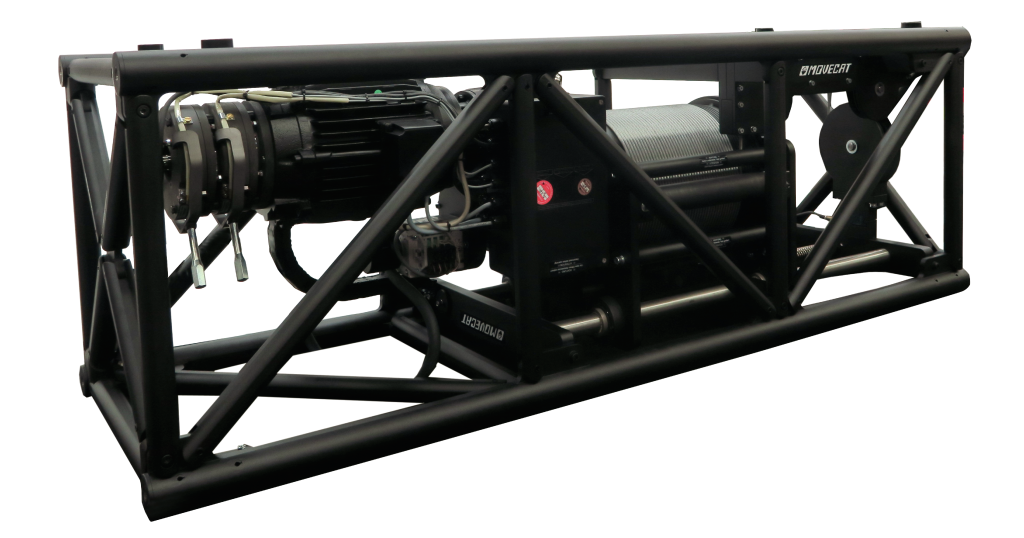

VMW-S 125-3-30 WINCH

The VMW-S 125-3-30 high-speed winch for use in entertainment, touring and events applications. The VMW-S 125-3-30 is tested in accordance with BGV C1 / DGU V 17, DIN 56950-1 and DGUV Principle 315-390 and approved for use above people and in manned airframes as well as conforming to EN 61508 SIL 3. It is capable of transporting loads of up to 125 kg at variable speeds  0 to 3 metres per second. The winch achieves acceleration values up to 3m/sec². Hoisting heights of up to 30 metres are possible.  Other capacity and velocity combinations are available.

Main features

  • safe working load: 125 kg
  • hoisting speed: 3 m / sec
  • acceleration: max 3 m/sec²
  • hoisting height: 30 m
  • cable: 5 mm, rotating free
  • much much more

Compliant with

BGV C1, as well DGU V 17, DIN 56950-1, DGUV Principle 315-390 and EN 61508 SIL 1 to SIL 3
